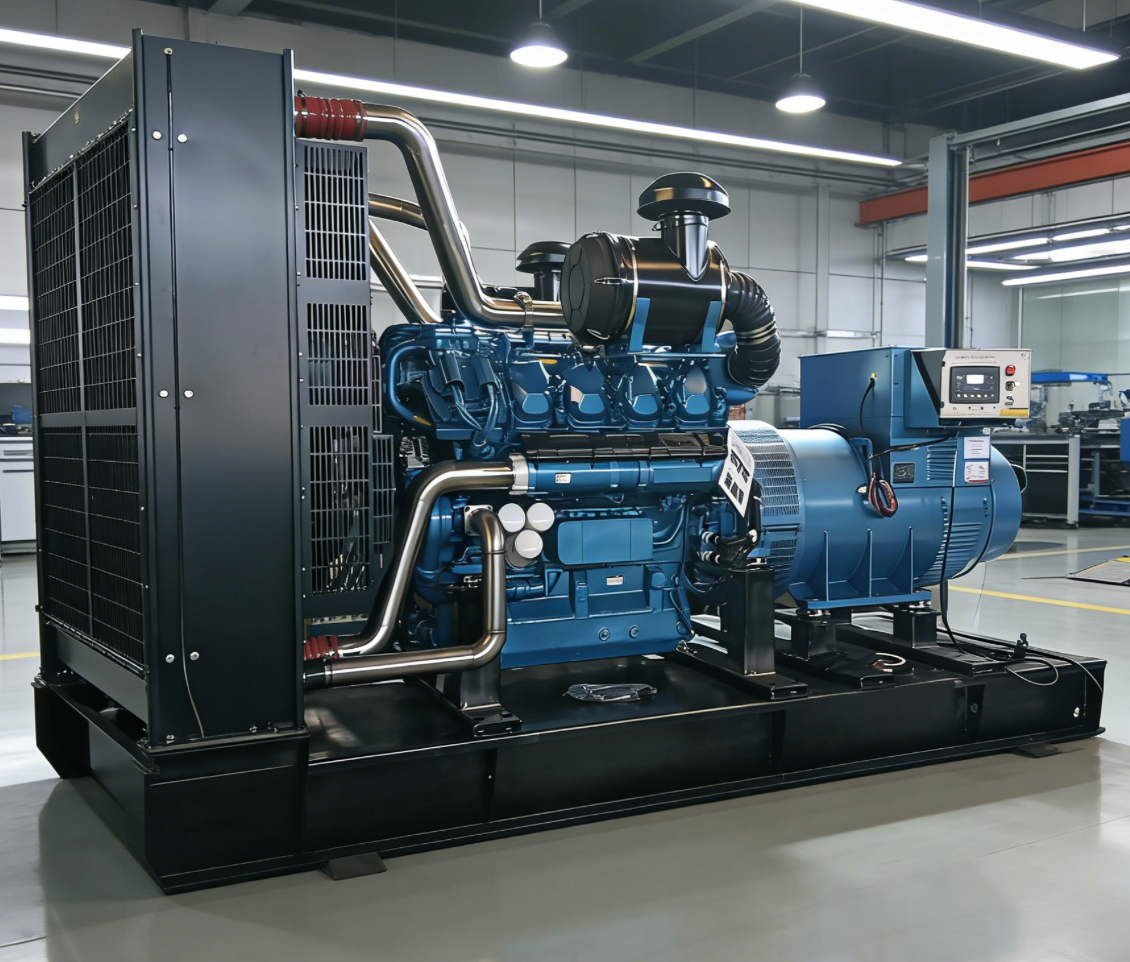

Genset Model |
Silent type |
WC1000GF |
|
|
Prime Power(kW/kVA) |
720/900 |
||
|
Standby Power(kW/kVA) |
800/1000 |
||
|
WEICHAI Diesel Engine |
Model |
8M33D895E310 |
|
|
Type |
V, 4cycle, 1500rpm |
||
|
Rated Power(kW) |
815 |
||
|
Intake Type |
Turbocharged and intercooled |
||
|
No.of Cylinder |
8.L |
||
|
Bore x Stroke(mm) |
150x185 |
||
|
Compression Ratio |
15:01 |
||
|
Electronic Governor Rate |
≦1% |
||
|
Exhaust Temperature(°C) |
510 |
||
|
Lub oil Capacity(L) |
105 |
||
|
Fuel consumption L/h 75% |
138 |
||
|
Displacement（L） |
26 |
||
|
Governing Type |
Electrical |
||
|
STAMFORD technology Alternator |
Model |
HC634D |
|
|
Rated Output kw/kva |
720/900 |
||
|
Power Efficiency |
98.40% |
||
|
Voltage Regulation |
≦±1.0 |
||
|
Excitation Type |
Brushless |
||
|
Insulation Class |
H |
||
|
Controller |
UK Deepsea brand |
DSE6120 |
|
|

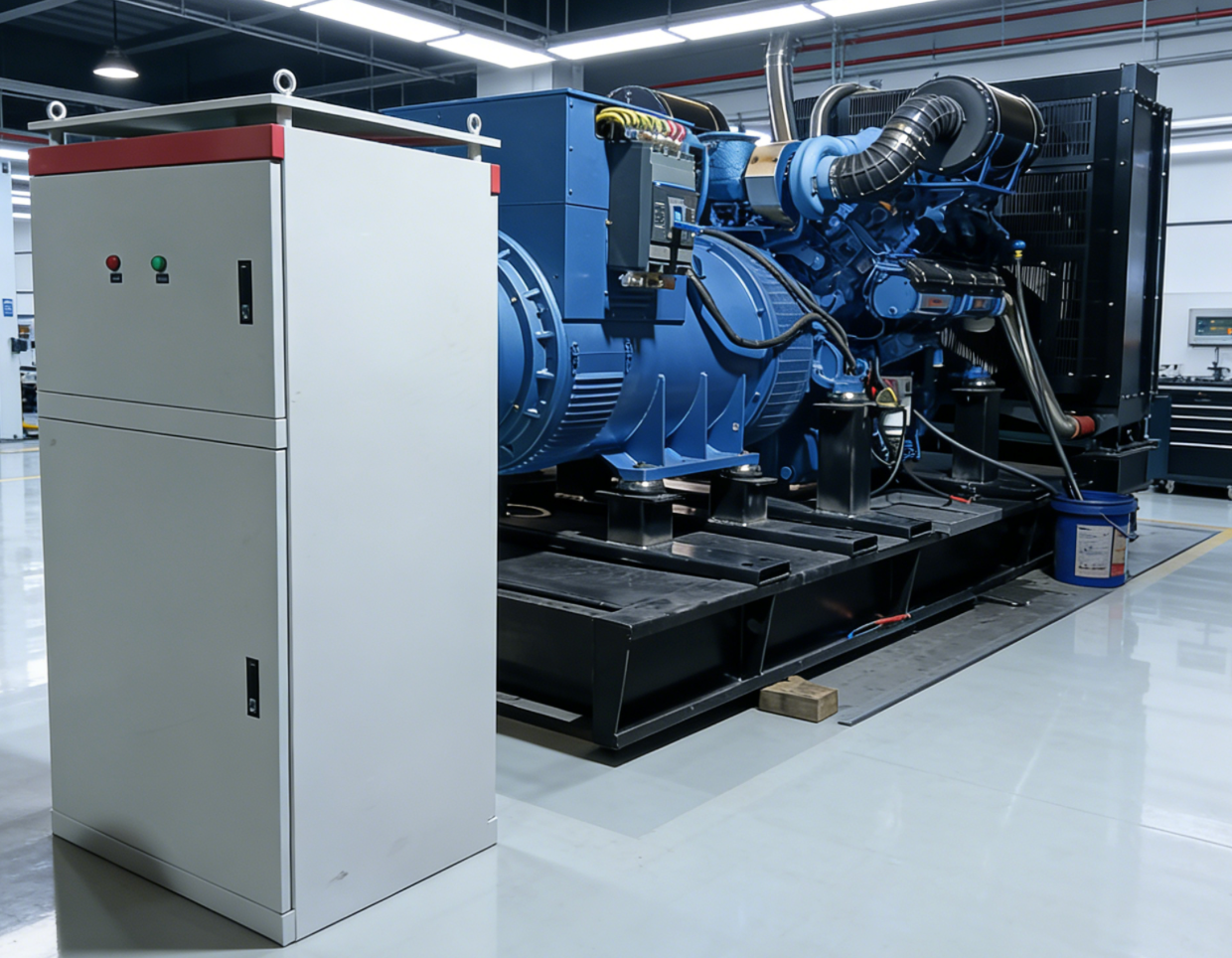

ATS 1600A with cabinet size(L*W*H) /weight (KG) |
1000*800*2200/ 300 |
||
|
OverSize of generator (mm) |
Length |
4350 |
|
|
Width |
2000 |
||
|
Height |
2350 |
||
|
Gross Weight(kg) |
7000 |
||
|
With battery, battery charger,shock absorber ,50°C radiator etc. |
|||
