| Genset Model | Silent Type | P10GES | |
| Standby Power (KW/KVA) | 8/10 | ||
| Prime Power(KW/kVA) | 7.39 | ||

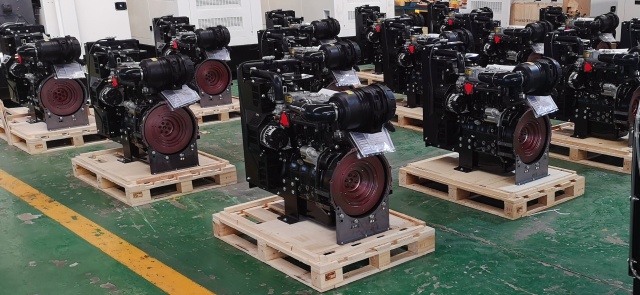

| Perkins Diesel Engine | Model | 403D-11G | |
| Type | water-cooled,vertical in line, 4-stroke, direct injection | ||
| Standby Power(kW) | 11.8 | ||
| Intake Type | Natural | ||
| No.of Cylinder | 3.L | ||
| Bore x Stroke(mm) | 77x81 | ||
| Displacement | 1.13 | ||
| Compression Ratio | 23:1 | ||
| Electronic Governor Rate | ≦1% | ||
| Noise Level (dBA) | ≦75 | ||
| Exhaust Temperature(°C) | 515 | ||
| Lub oil Capacity(L) | 5.2 | ||
| Rated Fuel Consumption75% (L/h) | 2.44 | ||
| Leroysomer alternator | Model | TAL-A42-D | |
| Standby Power(kW/kVA) | 8/10 | ||
| Voltage Regulation | ≦±1 | ||
| Excitation Type | Brushless | ||
| Controller | Deepsea brand | DSE6120 | |
| Fuel tank | seperate | 8hrs working capacity | |
| Overall Size(mm) | Length | 1550 | |
| Width | 720 | ||
| Height | 950 | ||
| Gross Weight(kg) | 525 | ||
With ATS, fuel tank ,battery, battery charger, rubber shock absorber , ,cummins manual book etc. |
|||
