Supply scope
| Genset Model | Silent | P14GFS | |
| Prime Power(kW/kVA) | 12/15 | ||
| Standby Power(kW/kVA) | 14/17 | ||

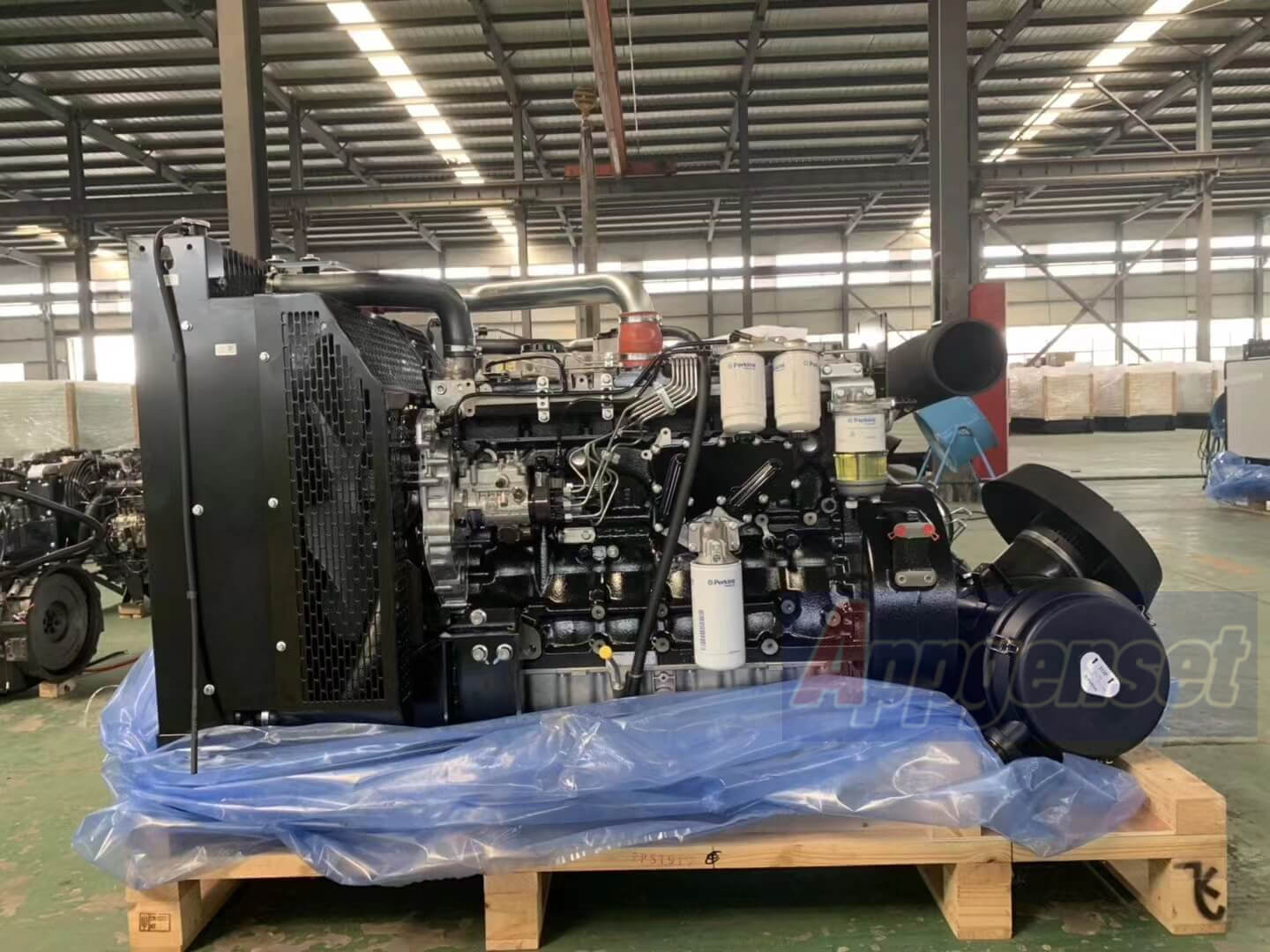

| Perkins Diesel Engine | Model | 403A-15G1 | |
| Type | water-cooled,vertical inline, 4-stroke,Naturally aspirated | ||
| Rated Power(kW) | 15 | ||
| No.of Cylinder | 3.L | ||
| Bore x Stroke(mm) | 84x90 | ||
| Piston Speed(m/s) | 6 | ||
| Compression Ratio | 22.5:1 | ||
| Mechanical Governor Rate | ≦5% | ||
| Noise Level (dBA) | ≦75 | ||
| Exhaust Temperature(°C) | 510 | ||
| Lub oil Capacity(L) | 6 | ||
| Rated Fuel Consumption(L/h) | 3.1 | ||
| Displacement（L） | 1.496 | ||
| Governing Type | machinery | ||
| Leroyspmer Alternator | Model | TAL-A40-C | |
| Standby Output KW/KVA | 11/14 | ||
| Power Efficiency | 89.60% | ||
| Voltage Regulation | ≦±1.5 | ||
| Excitation Type | Brushless | ||
| Insulation Class | H | ||
| Controller | UK Deepsea brand | DSE6120 | |
| Overall Size(mm) | Length | 1850 | |
| Width | 800 | ||
| Height | 1050 | ||
| Gross Weight(kg) | 525 | ||
| optional ATS ,battery, battery charger,shock absorber , manual book etc. | |||
