Supply scope

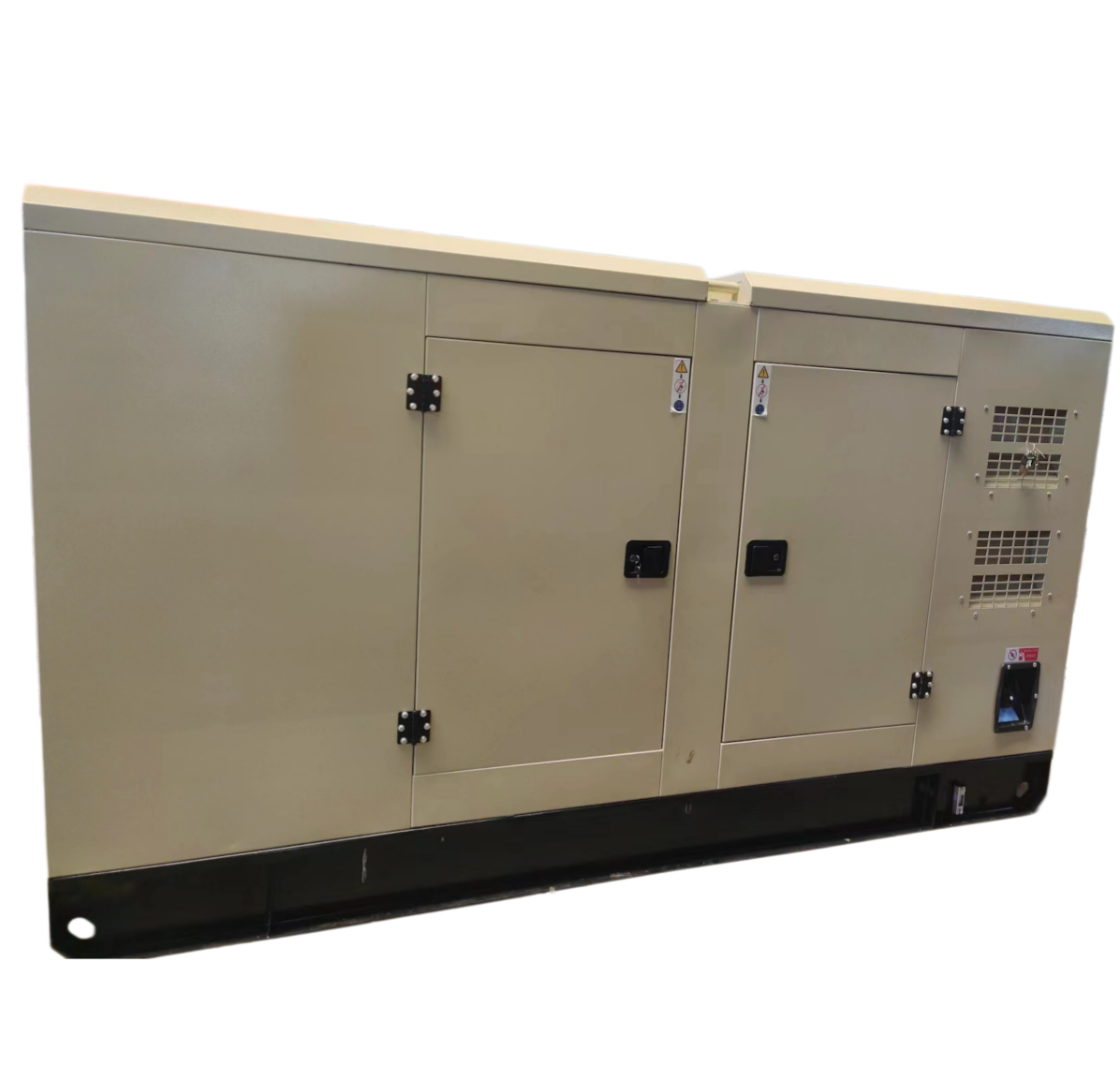

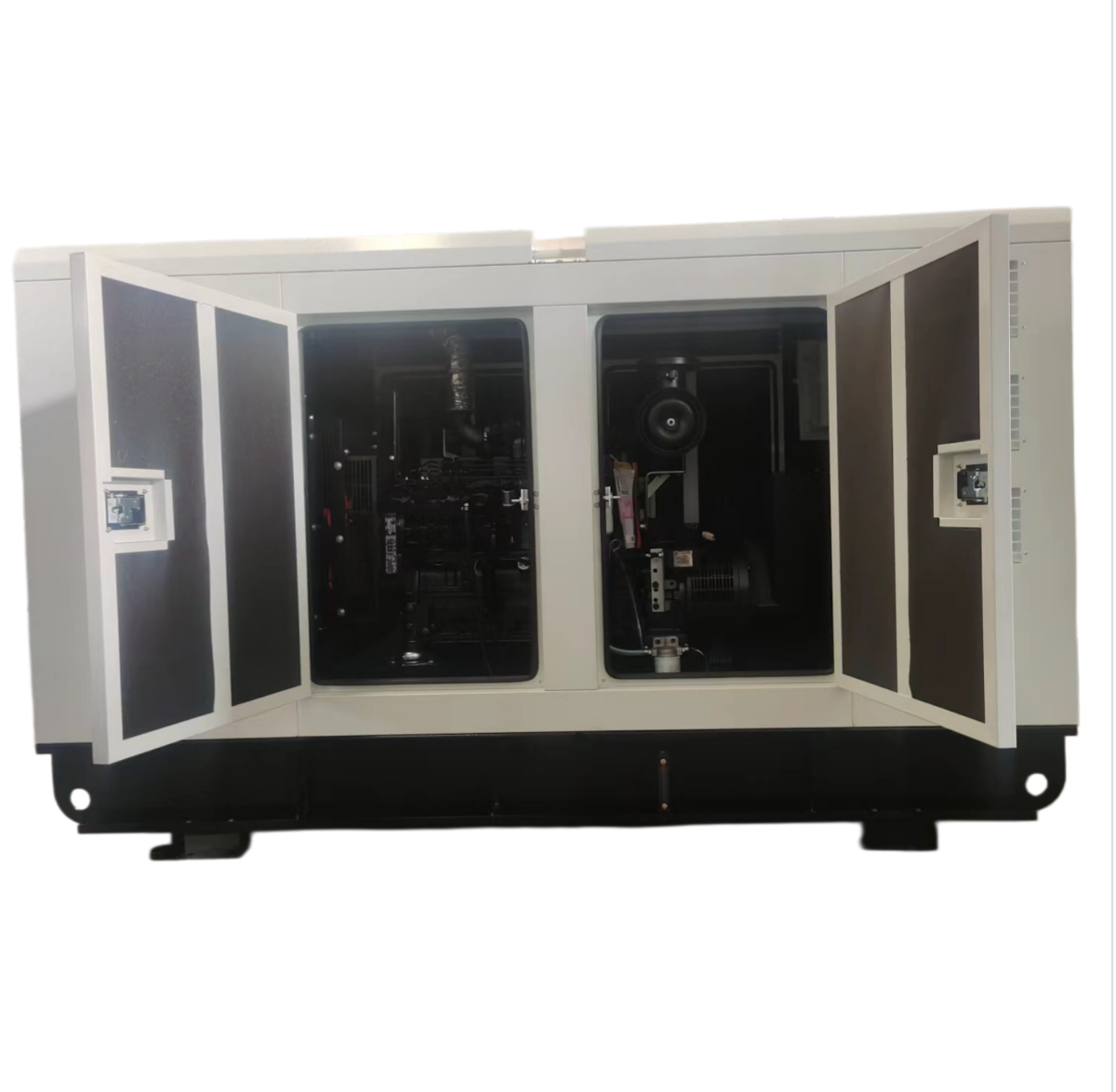

| Genset Model | Silent Type | CU275GFS | |
| Standby Power (KW/KVA) | 220/275 | ||
| Prime Power(KW/kVA) | 200/250 | ||
| CUMMINS Diesel Engine | Model | 6CTAA8.3-G9 | |
| Type | water-cooled, in line, 4-stroke, direct injection | ||
| Standby Power(kW) | 231 | ||
| Aspiration | Turbocharged and aftercooled | ||
| No.of Cylinder | 6 | ||
| Bore x Stroke(mm) | 114x135 | ||
| Displacement | 8.3 | ||
| Compression Ratio | 16.7:1 | ||
| Noise Level (dBA) | 75-85 | ||
| Electronic Governor Rate | ≦1% | ||
| Exhaust Temperature(°C) | 520 | ||
| Lub oil Capacity(L) | 23.8 | ||
| Rated Fuel Consumption75% (L/h) | 42 | ||
| Alternator | Model | UC274K | |
| Rated Power(kW/kVA) | 200/250 | ||
| Voltage Regulation | ≦±1 | ||
| Excitation Type | Brushless | ||
| Controller | Smartgen brand | HGM6120 | |
| Fuel tank | sub-base | 8hrs working capacity | |
| Overall Size(mm) | Length | 3520 | |
| Width | 1250 | ||
| Height | 2030 | ||
| Gross Weight(kg) | 2690 | ||
| With ATS ， battery, battery charger,shock absorber , cummins manual book etc. | |||
| All technologies are subject to the interpretation of the technology department, subject to change without notice. | |||
