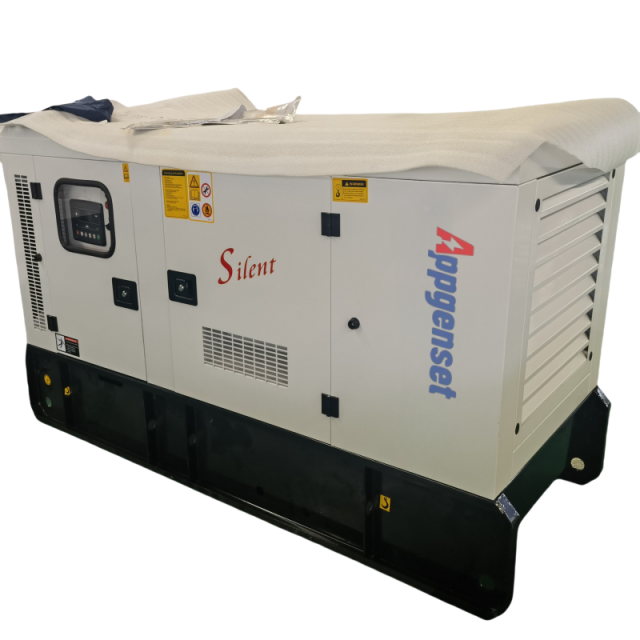

| Genset Model | Silent Type | AP22GFS | |
| Standby Power (KW/KVA) | 17.6/22 | ||
| Prime Power(KW/kVA) | 16/20 | ||

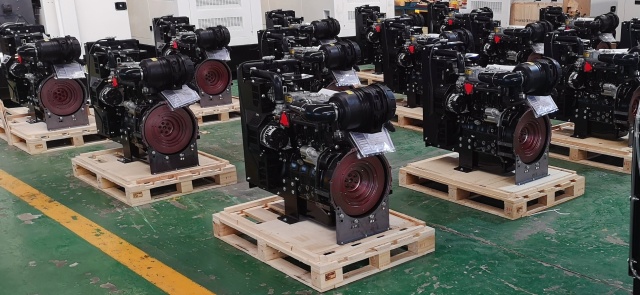

| PERKINS Diesel Engine | Model | 404D-22G | |
| Type | water-cooled, in line, 4-stroke, direct injection | ||
| Rated Power(kW) | 20.3 | ||
| Aspiration | Natural | ||
| No.of Cylinder | 4.L | ||
| Bore x Stroke(mm) | 84x100 | ||
| Displacement | 2,216 | ||
| Compression Ratio | 23.3:1 | ||
| Noise Level (dBA) | ≦1% | ||
| Electronic Governor Rate | ≦75 | ||
| Exhaust Temperature(°C) | 445 | ||
| Lub oil Capacity(L) | 10.5 | ||
| Rated Fuel Consumption75% (L/h) | 4 | ||
| Leroysomer Alternator | Model | TAL-A40-F | |
| Rated Power(kW/kVA) | 16/20 | ||
| Voltage Regulation | ≦±1 | ||
| Excitation Type | Brushless 100%copper | ||
| Controller | Deepsea brand | DSE6120 | |
| Fuel tank | sub-base | 8hrs working capacity | |
| Overall Size(mm) | Length | 1950 | |
| Width | 900 | ||
| Height | 1160 | ||
| Gross Weight(kg) | 650 | ||
| With battery, battery charger,shock absorber , manual book etc. | |||
| All technologies are subject to the interpretation of the technology department, subject to change without notice. | |||
