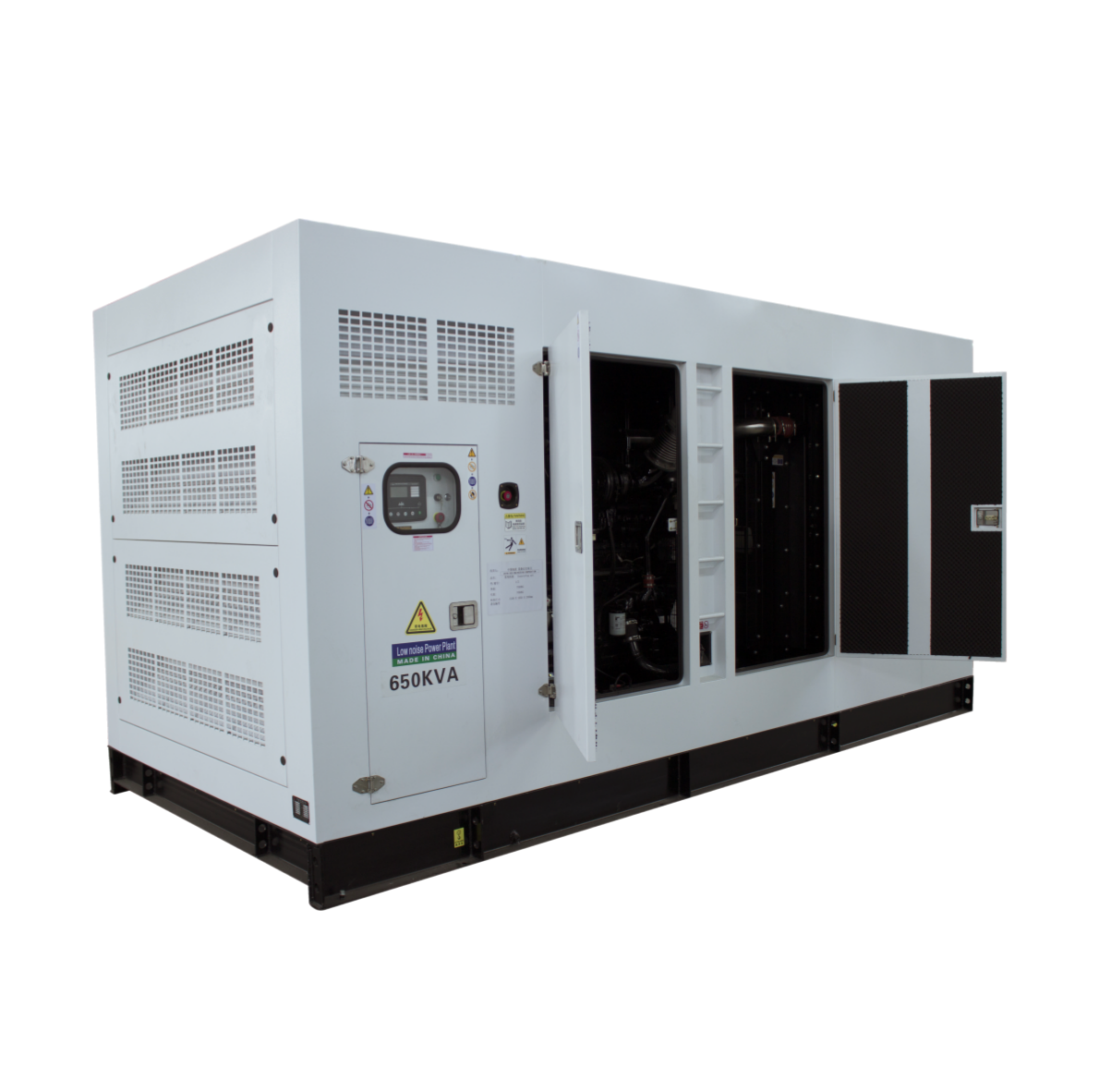

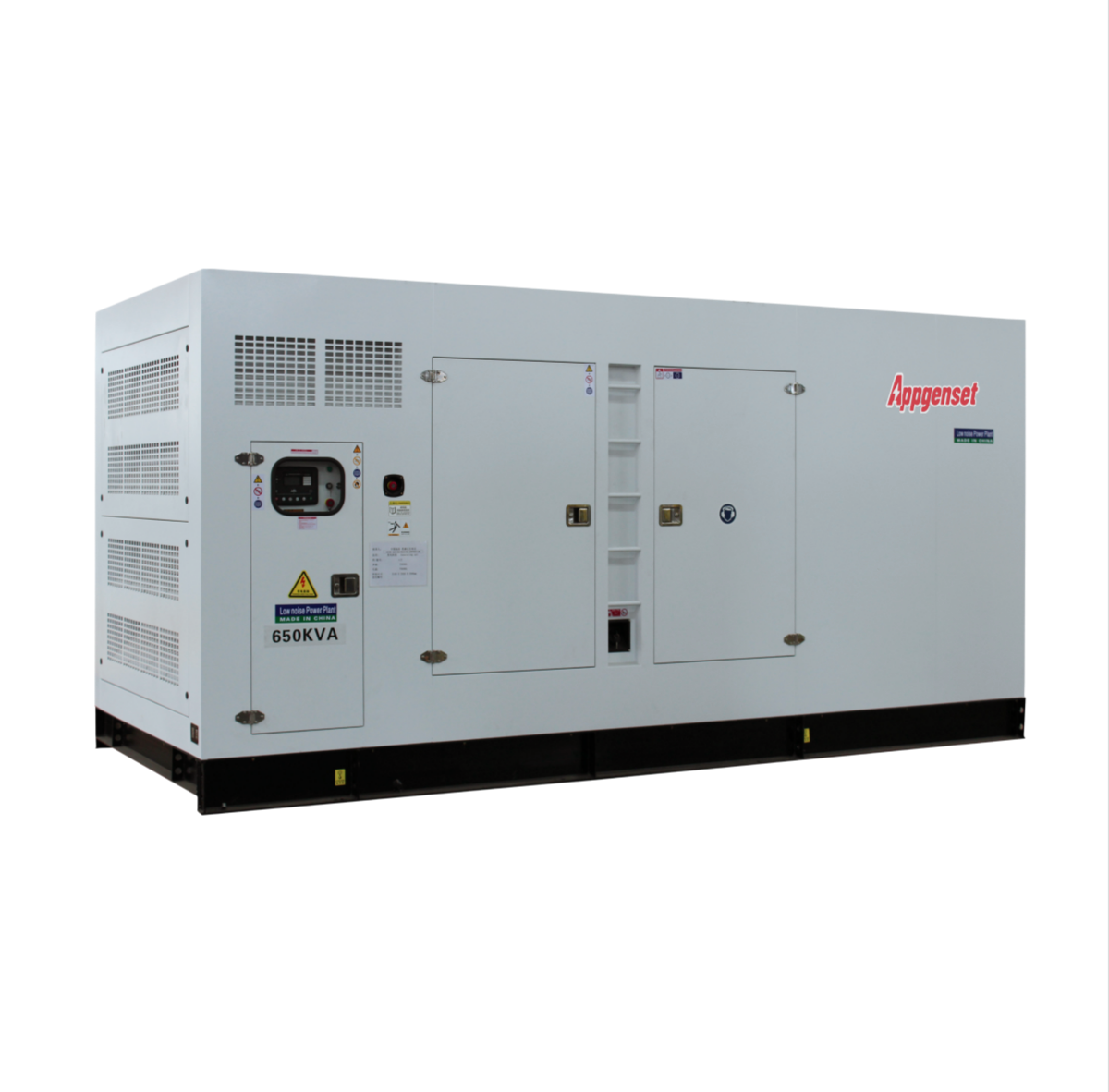

| Genset Model | Silent type | CU625GFS | |
| Standby Power(kW/kVA) | 500/625 | ||
| Prime power(KW/KVA) | 454/568 | ||
| Diesel Engine | Brand | CUMMINS | |
| Model | QSZ13-G10 | ||
| Type | water-cooled,inline, 4-stroke,direct injection , | ||
| Rated Power(kW) | 463 | ||
| Aspiration | Turbocharged & charge air cooled | ||
| No.of Cylinder | 6 | ||
| Bore x Stroke(mm) | 130x163 | ||
| Compression Ratio | 17:01 | ||
| Piston speed m/s | 9.78 | ||
| Electronic Governor Rate | ≦1% | ||
| Exhaust Temperature(°C) | 547 | ||
| Lub oil Capacity(L) | 78 | ||
| Rated Fuel consumption (L/h) | 80 | ||
| Displacement（L） | 13 | ||
| Governing Type | Electrical | ||
| Stamford technology Alternator | Model | HC534ES | |
| Standby Output(KW/KVA) | 500/625 | ||
| Power Efficiency | 94.40% | ||
| Voltage Regulation | ≦±1.0 | ||
| Excitation Type | Brushless | ||
| Insulation Class | H | ||
| Controller | brand & model | UK deepsea DSE6120 | |
| Overall Size(mm) | Length | 4350 | |
| Width | 1600 | ||
| Height | 2400 | ||
| Gross Weight(kg) | 4900 | ||
