Genset Model |
Silent Type |
CU688GFS |
|
|
Standby Power (KW/KVA) |
550/688 |
||
|
Prime Power(KW/kVA) |
500/625 |
||
|

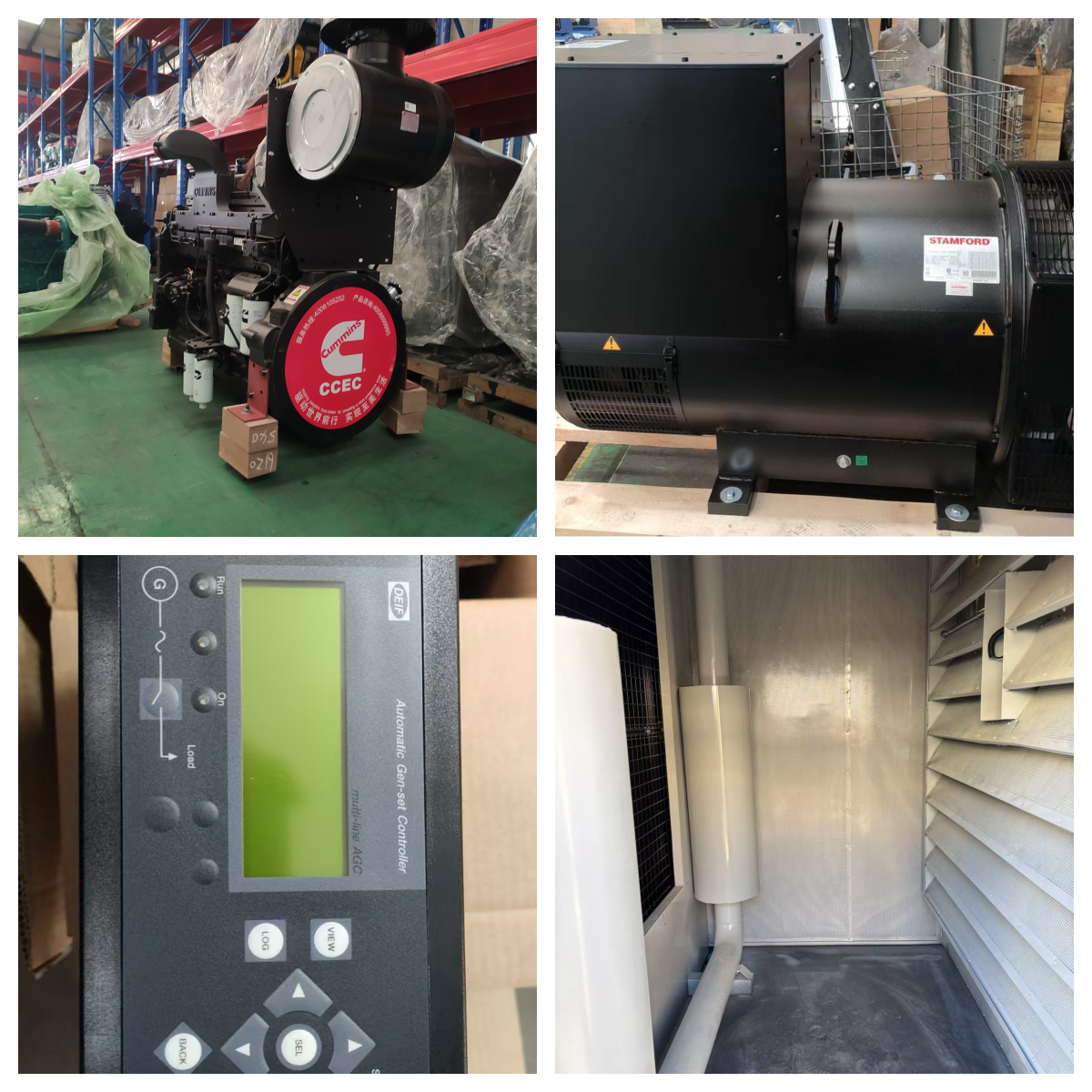

CUMMINS Diesel Engine |
Model |
KTAA19-G6A |
|
|
|
Type |
water-cooled, in line, 4-stroke, |
|
|
|
Standby Power(kW) |
610 |
|
|
|
Aspiration |
Turbocharged and CAC |
|
|
|
No.of Cylinder |
6 |
|
|
|
Bore x Stroke(mm) |
159x159 |
|
|
|
Displacement |
19 |
|
|
|
Compression Ratio |
13.9:1 |
|
|
|
Electronic Governor Rate |
≦1% |
|
|
|
Exhaust Temperature(°C) |
446 |
|
|
|
Lub oil Capacity(L) |
50 |
|
|
|
Rated Fuel Consumption75% (L/h) |
91.6 |
|
|
Stamford tech Alternator |
Model |
HC534FS |
|
|
|
Prime Power(kW/kVA) |
500/625 |
|
|
|
Voltage Regulation |
≦±1 |
|
|
|
Excitation Type |
Brushless |
|
|
Controller |
UK Deepsea brand/DEIF |
DSE6120+DSE890 /AGC4 |
|
|
Fuel tank |
sub-base |
8hrs working capacity |
|
|
Overall Size(mm) |
Length |
4700 |
|
|
|
Width |
2100 |
|
|
|
Height |
2400 |
|
|
Gross Weight(kg) |
6000 |
||
|
With fuel tank, battery, battery charger,shock absorber ,40/50’C radiator, manual book etc. |
|||
