Supply scope
| Genset Model | Silent Type | P70GFS | |
| Standby Power (KW/KVA) | 56/70 | ||
| Prime Power(KW/kVA) | 50/62.5 | ||

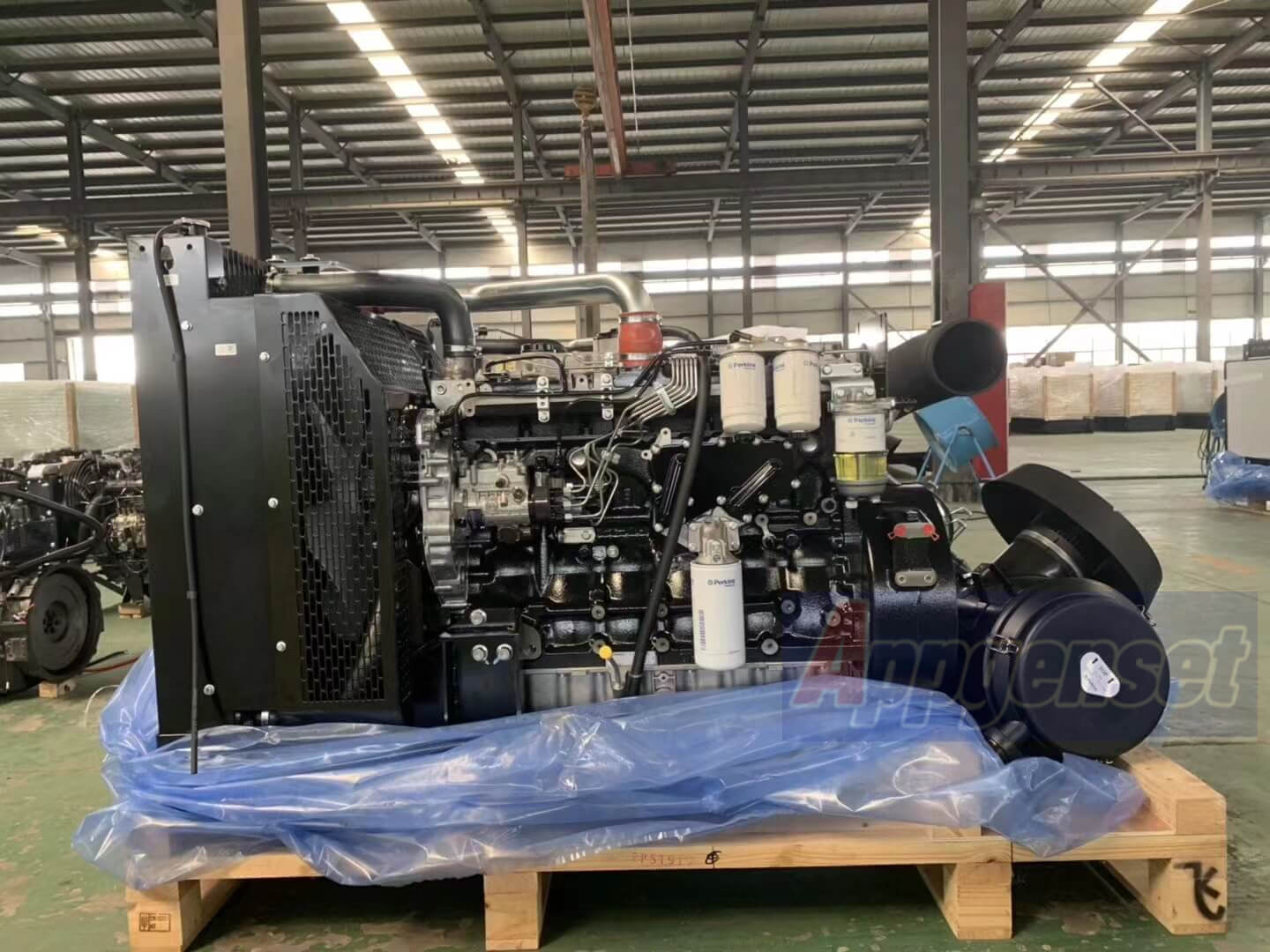

| PERKINS Diesel Engine | Model | 1103A-33TG2 | |
| Type | Vertical in line、4-Strokes、Water cooled | ||
| Rated Power(kW) | 59.3 | ||
| Aspiration | Turbo | ||
| No.of Cylinder | 3 | ||
| Bore x Stroke(mm) | 105x127 | ||
| Displacement | 3.3 | ||
| Compression Ratio | 17.25:1 | ||
| Noise Level (dBA) | 75 | ||
| Machanical Governor Rate | ≦5% | ||
| Exhaust Temperature(°C) | 650 | ||
| Total coolant capacity(L) | 10.2 | ||
| Lub oil Capacity(L) | 7.9 | ||
| Rated Fuel Consumption75% (L/h) | 10.4 | ||
| Leroysomer Alternator | Model | TAL-A42-H | |
| Rated Power(kW/kVA) | 50/62.5 | ||
| Voltage Regulation | ≦±1 | ||
| Excitation Type | Brushless 100% copper | ||
| Controller | UK Deepsea brand | DSE6120 | |
| Fuel tank | sub-base | 8hrs working capacity | |
| Overall Size(mm) | Length | 2250 | |
| Width | 1050 | ||
| Height | 1250 | ||
| Gross Weight(kg) | 1050 | ||
| With ATS ,battery, battery charger,shock absorber , manual book etc. | |||
