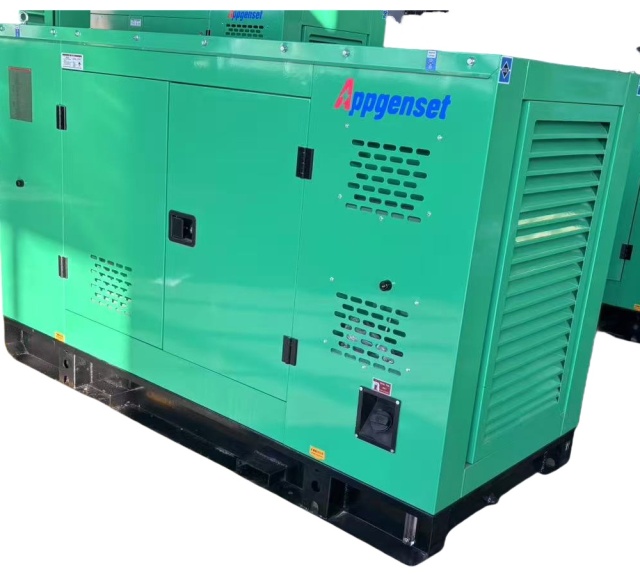

| Genset Model | Silent Type | AY85GFS | |
| Prime Power(kW/kVA) | 60/75 | ||
| Diesel Engine | Brand | YUCHAI | |
| Model | YC4A100Z-D25 | ||
| Type | water-cooled, in line, 4-stroke, direct injection | ||
| Prime Power(kW) | 70 | ||
| Intake Type | Turbocharged | ||
| No.of Cylinder | 4.L | ||
| Bore x Stroke(mm) | 110x125 | ||
| Displacement | 4 | ||
| Compression Ratio | 17.5:1 | ||
| Electronic Governor Rate | ≦1% | ||
| Noise Level (dBA) | ≦75 | ||
| Exhaust Temperature(°C) | 400 | ||
| Lub oil Capacity(L) | 18 | ||
| Rated Fuel Consumption(L/h) | 16.7 | ||
| Alternator | Model | 224F | |
| Prime Power(kW/kVA) | 60/75 | ||
| Power Efficiency | 89.6% | ||
| Voltage Regulation | ≦±1 | ||
| Excitation Type | Brushless | ||
| Insulation Class | H | ||
| Controller | Smartgen brand | HGM6120 | |
| Fuel tank | sub-base | 8hrs | |
| ATS | with | ||
| Overall Size(mm) | Length | 2450 | |
| Width | 1050 | ||
| Height | 1400 | ||
| Gross Weight(kg) | 1200 | ||
| With fuel tank ,oil heater and water heater,battery, battery charger, battery holder,fuel meter,rubber shock absorber | |||
