600kw weichai generator with Leroysomer alternator Deepsea controller Specification
| Genset Model |
Silent type |
WC825GFS |
|
| Standby Power(kW/kVA) |
660/825 |
| Prime power(KW/KVA) |
600/750 |
| Diesel Engine |
Brand |
WEICHAI |
| Model |
6M33D725E310 |
| Type |
water-cooled, 4-stroke,direct injection , |
| rated Power(kW) |
675 |
| Aspiration |
Turbocharging and intercooling
|
| No.of Cylinder |
6 |
| Bore x Stroke(mm) |
150×185 |
| Compression Ratio |
15:01 |
| Piston speed m/s |
9.25 |
| Electronic Governor Rate |
≦1% |
| Noise @7m |
>85db |
| Exhaust Temperature(°C) |
550 |
| Lub oil Capacity(L) |
61 |
| Rated Fuel consumption (L/h) |
116 |
| Displacement（L） |
19.6 |
| Governing Type |
Electrical |
| Alternator |
Brand |
Leroysomer |
| Model |
TAL-A49-B |
| Rated Output(KW/KVA) |
600/750 |
| Power Efficiency |
85.00% |
| Voltage Regulation |
≦±1.0 |
| Excitation Type |
Brushless |
| Insulation Class |
H |
| Controller |
brand & model |
UK deepsea DSE6120 |
| Water Heater |
include |
| seperate ATS with cabinet 1250A |
L*W*H=800*600*1880mm 320kg |
| battery battery charger etc |
including |
| Overall Size(mm) |
Length |
5100 |
| Width |
1850 |
| Height |
2460 |
| Gross Weight(kg) |
6500 |
| 40HC Loading quantity(set) |
2 |
Professional Introduction: 750KVA/600KW Diesel Generator by WEICHAI 6M33D725E310
Overview
The WC825GFS Silent Type diesel generator set is a high-performance power solution engineered for demanding industrial, commercial, and critical backup applications. Combining the robustness of WEICHAI's 6M33D725E310 engine with premium Leroysomer TAL-A49-B alternator technology and the sophisticated Deepsea DSE6120 controller, this 600KW (750KVA standby) unit delivers unparalleled reliability and efficiency. Designed to operate under extreme conditions, it supports multiple voltage configurations (230/132V, 400/230V, 220/127V, 480/277V) for global compatibility.
Technical Specifications

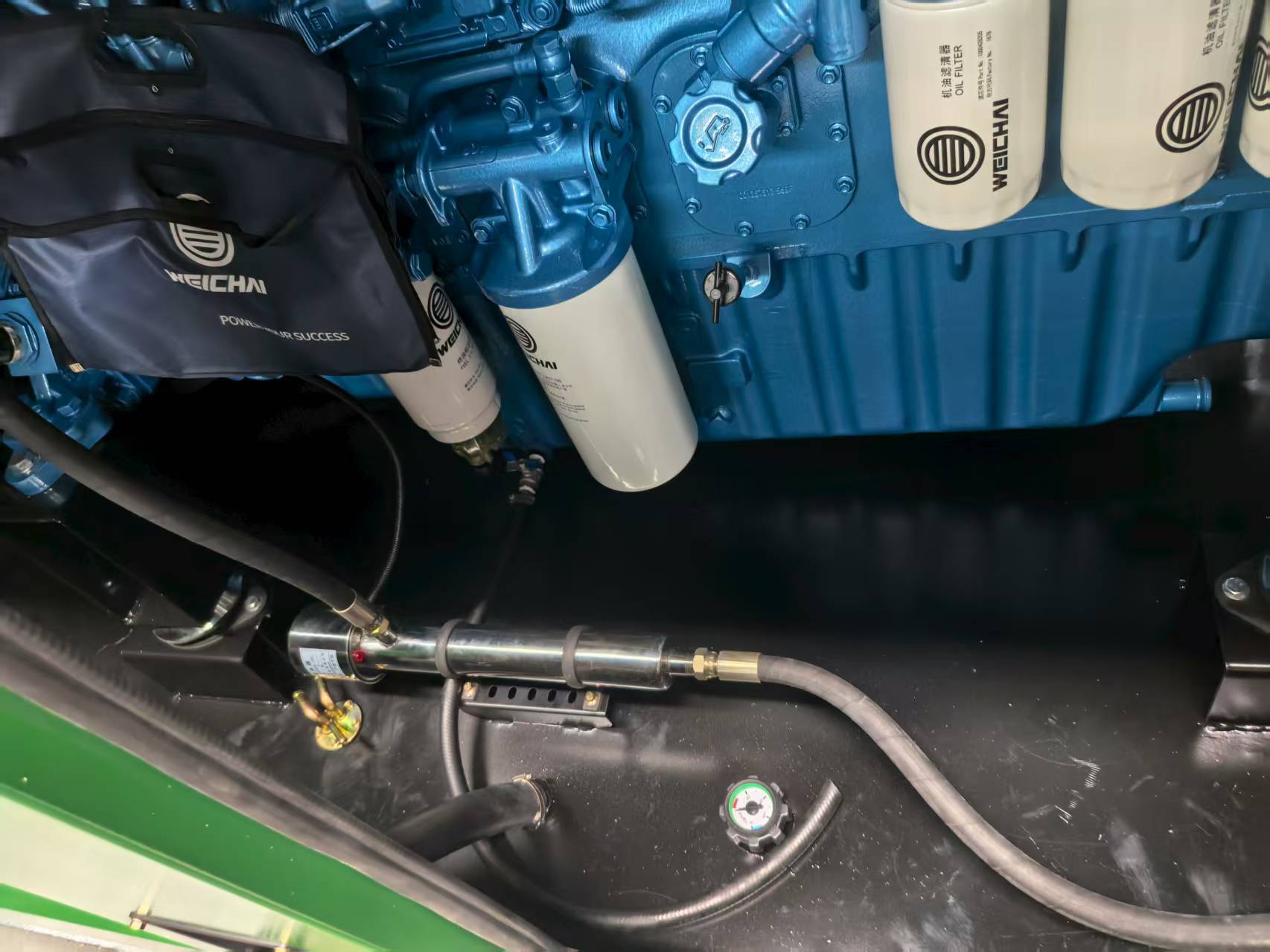

Diesel Engine: WEICHAI 6M33D725E310
- Type: Water-cooled, 4-stroke, direct injection
- Rated Power: 675kW
- Aspiration: Turbocharged with intercooling
- Cylinders: 6
- Bore × Stroke: 150 × 185 mm
- Compression Ratio: 15:1
- Governor: Electronic (≦1% speed regulation)
- Fuel Consumption: 116 L/h at prime load
- Displacement: 19.6L
- Lubrication Oil Capacity: 61L
- Exhaust Temperature: ≤550°C
Alternator: Leroysomer TAL-A49-B
- Rated Output: 600kW / 750kVA (prime), 660kW / 825kVAby)
- Efficiency: 85%
- Voltage Regulation: ≦±1.0%
- Excitation: Brushless
- Insulation Class: H (suitable for ≤180°C environments)
Control System: Deepsea DSE6120
- Features: Automated start/stop, fault diagnostics, synchronization, and load sharing.
- Integration: Compatible with ATS (Automatic Transfer Switch) for seamless grid-to-generator transitions.

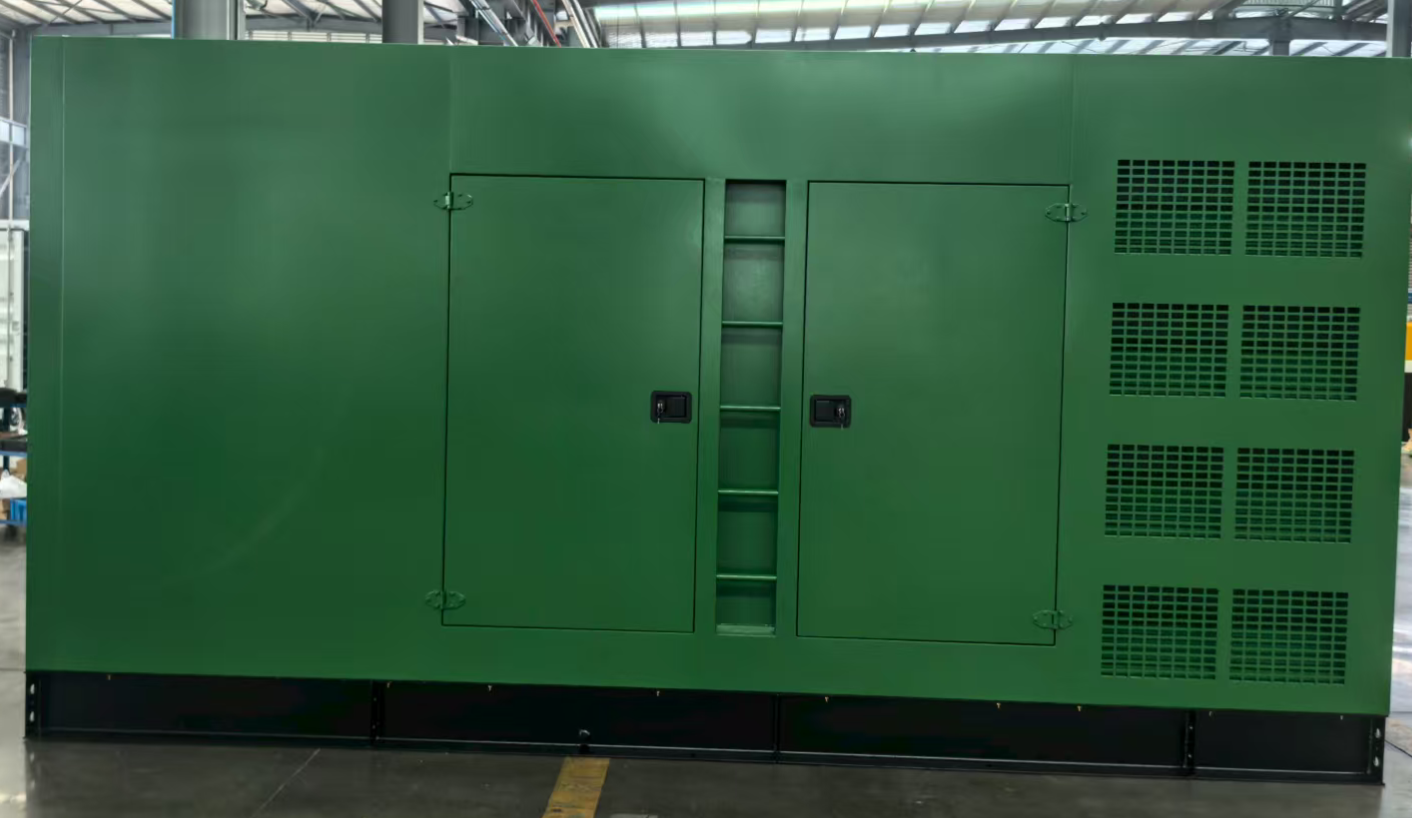

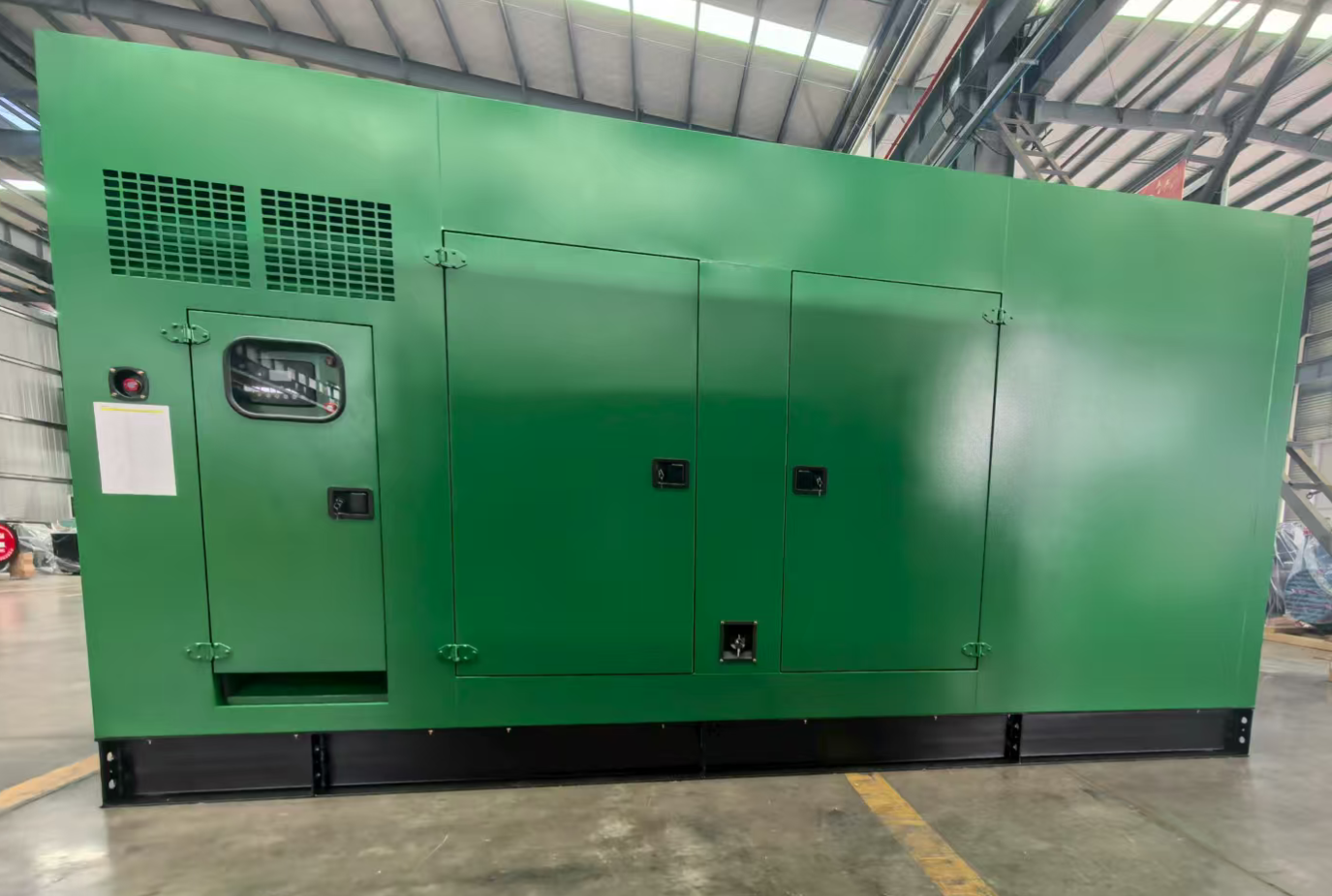

Structural Design
- Dimensions (L×W×H): 5100 × 1850 × 2460 mm
- Weight: 6500 kg
- Noise Level: ≤85 dB(A) at 7 meters
- Inclusions:
- Fuel tank

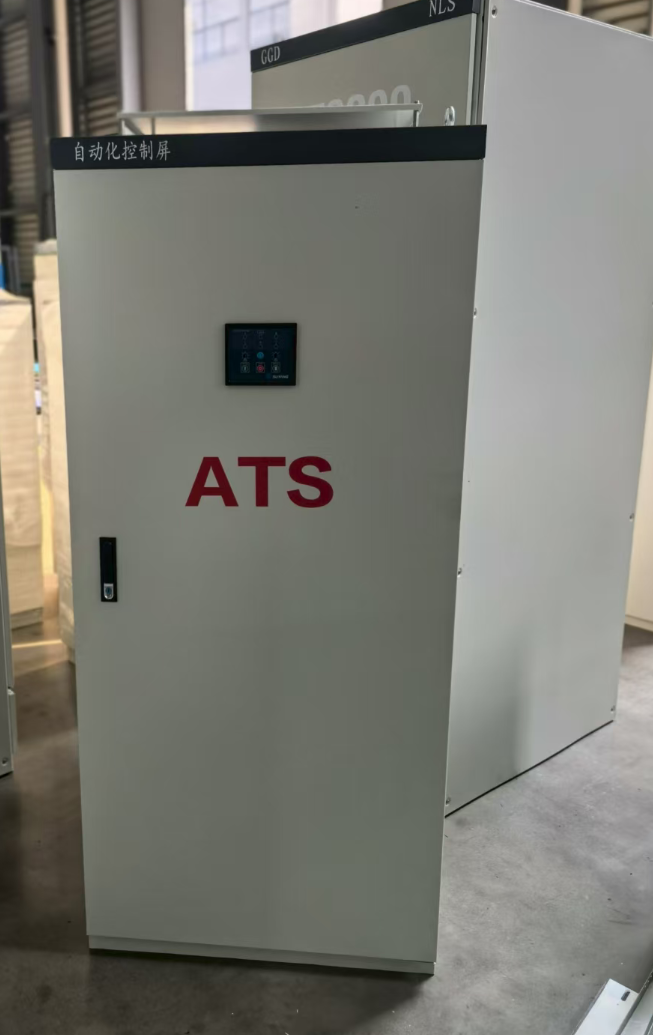

- 1250A ATS cabinet (800×600×1880 mm, 320 kg)
- Battery charger
- Water heater
Logistics
- Container Compatibility: 2 units per 40HC container.
Key Advantages
- Adaptability: Multi-voltage design caters to diverse regional grid standards.
- Durability: H-class insulation ensures performance in high-temperature environments.
- Precision Control: Deepsea DSE6120 enables remote monitoring and reduces operational risks.
Efficiency: Turbocharged engine with intercooling optimizes fuel combustion.
- Low Maintenance: Brushless alternator minimizes wear parts.
Applications
Ideal for:
- Data centers and hospitals (critical backup)
- Mining and construction (prime power)
- Manufacturing plants (peak shaving)
- Telecommunications (hybrid energy systems)
Why Choose This Generator?
- Proven Reliability: Endorsed by operational videos from global users.
- Customization: Optional Stamford/Chinese alternators and Smartgen/Deif controllers.
- Compliance: Meets ISO 8523046 standards for performance testing.
Call to Action
For site operation videos, detailed performance curves, or a customized quote, contact our engineering team today. Optimize your power resilience with a generator built for extremes.
