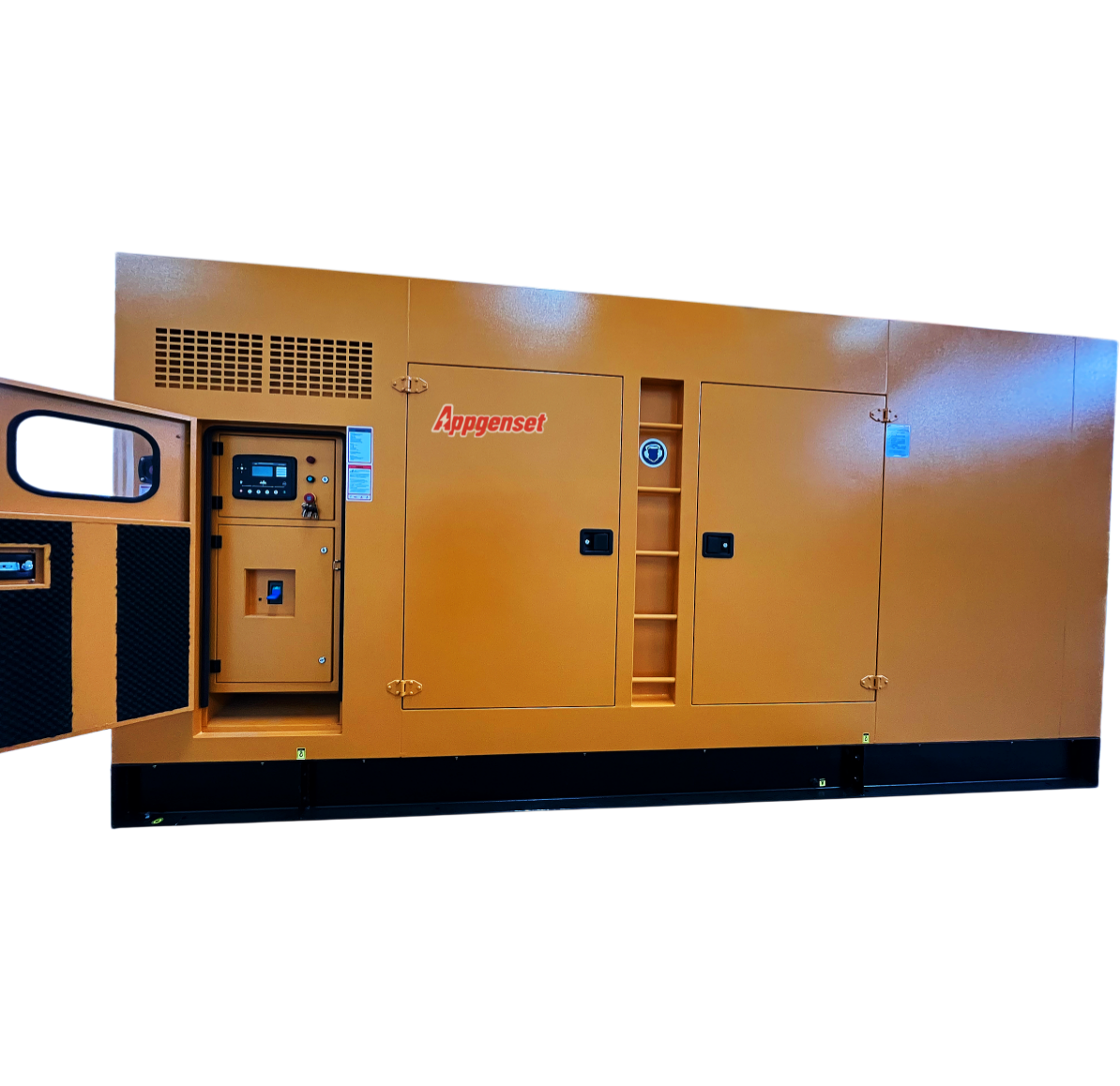

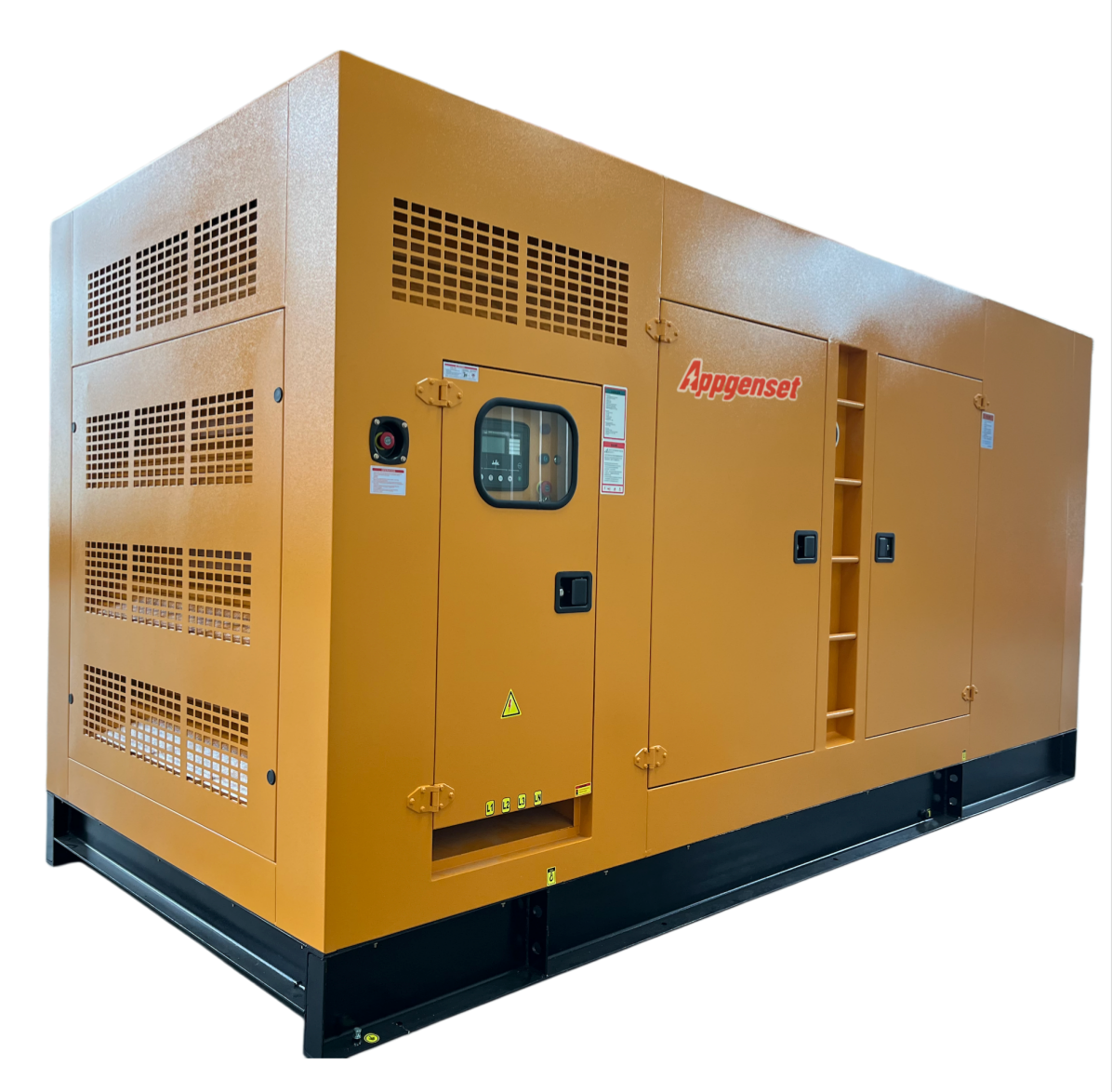

| Genset Model | Silent Type | CU880GFS | |
| Standby Power (KW/KVA) | 704/880 | ||
| Prime Power(KW/kVA) | 640/800 | ||
| CUMMINS Diesel Engine | Model | KTA38G2B | |
| Type | water-cooled, in line, 4-stroke, direct injection | ||
| Rated Power(kW) | 711 | ||
| Aspiration | Turbocharged and aftercooled | ||
| No.of Cylinder | 6 | ||
| Bore x Stroke(mm) | 159x159 | ||
| Displacement | 38.0 | ||
| Compression Ratio | 14.5:1 | ||
| Noise Level (dBA) | 105 | ||
| Electronic Governor Rate | ≦1% | ||
| Exhaust Temperature(°C) | 520 | ||
| Lub oil Capacity(L) | 151.4 | ||
| Rated Fuel Consumption75% (L/h) | 155.43 | ||
| Alternator | Model | HC634C | |
| Rated Power(kW/kVA) | 640/800 | ||
| Voltage Regulation | ≦±1 | ||
| Excitation Type | Brushless | ||
| Controller | Deepsea | DSE6120 | |
| Parallel cabinet | including | ||
| Overall Size(mm) | Length | 5800 | |
| Width | 2200 | ||
| Height | 2532 | ||
| Gross Weight(kg) | 10130 | ||

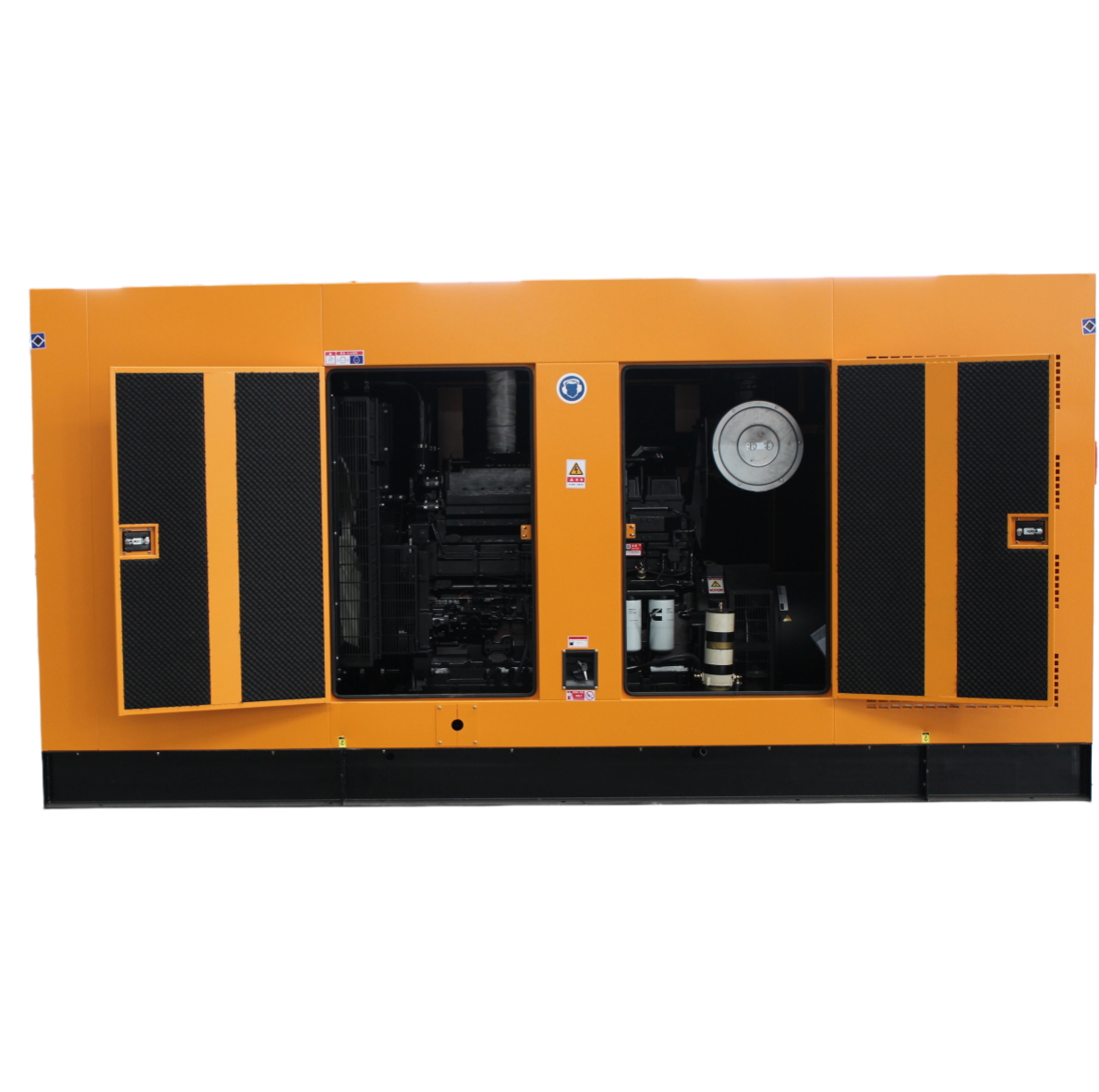

| Diesel Engine with radiator, copper wire brushless alternator,with fuel tank, Main line circuit breaker,Attenuator silencer, start battery, and other accessories etc. | |||
