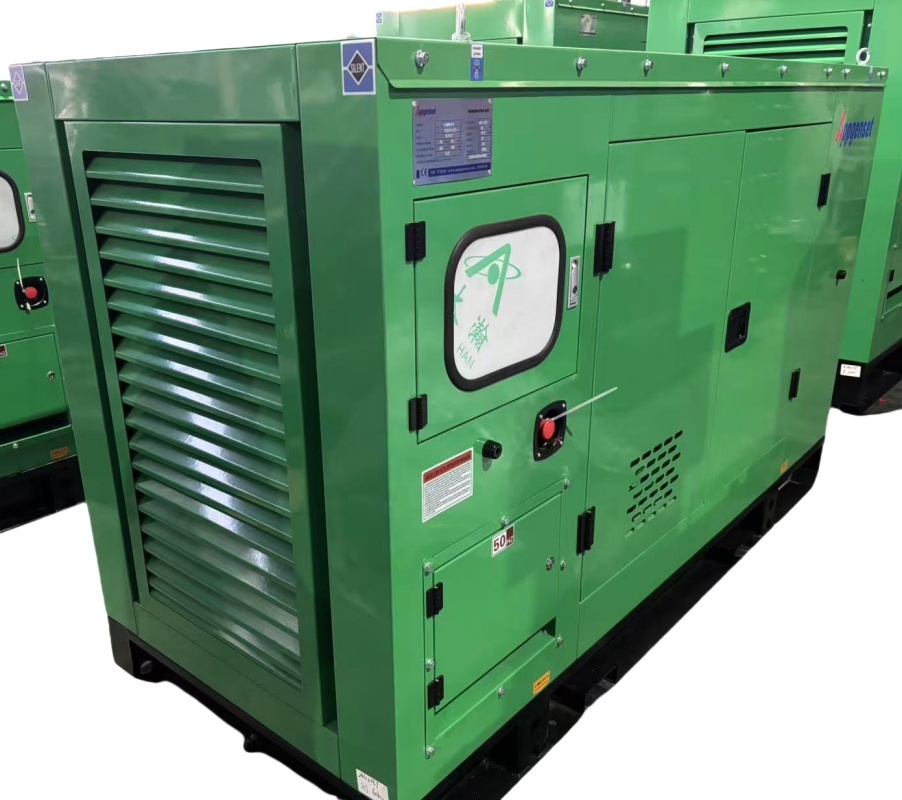

| Genset Model | Silent Type | CU110GES | |
| Standby Power (KW/KVA) | 88/110 | ||
| Prime Power(KW/kVA) | 80/100 | ||
| CUMMINS Diesel Engine | Model | 6BT5.9-G2 | |
| Type | water-cooled, in line, 4-stroke, direct injection | ||
| Standby Power(kW) | 100 | ||
| Aspiration | Turbocharged | ||
| No.of Cylinder | 6 | ||
| Bore x Stroke(mm) | 102x120 | ||
| Displacement | 5.9 | ||
| Compression Ratio | 17.3:1 | ||
| Noise Level (dBA) | 75 | ||
| Electronic Governor Rate | ≦1% | ||
| Exhaust Temperature(°C) | 564 | ||
| Lub oil Capacity(L) | 16.4 | ||
| Rated Fuel Consumption75% (L/h) | 20.7 | ||
| ORIGINAL LEROYSOMER Alternator | Model | TAL-A44-C | |
| Rated Power(kW/kVA) | 80/100 | ||
| Voltage Regulation | ≦±1 | ||
| Excitation Type | Brushless | ||

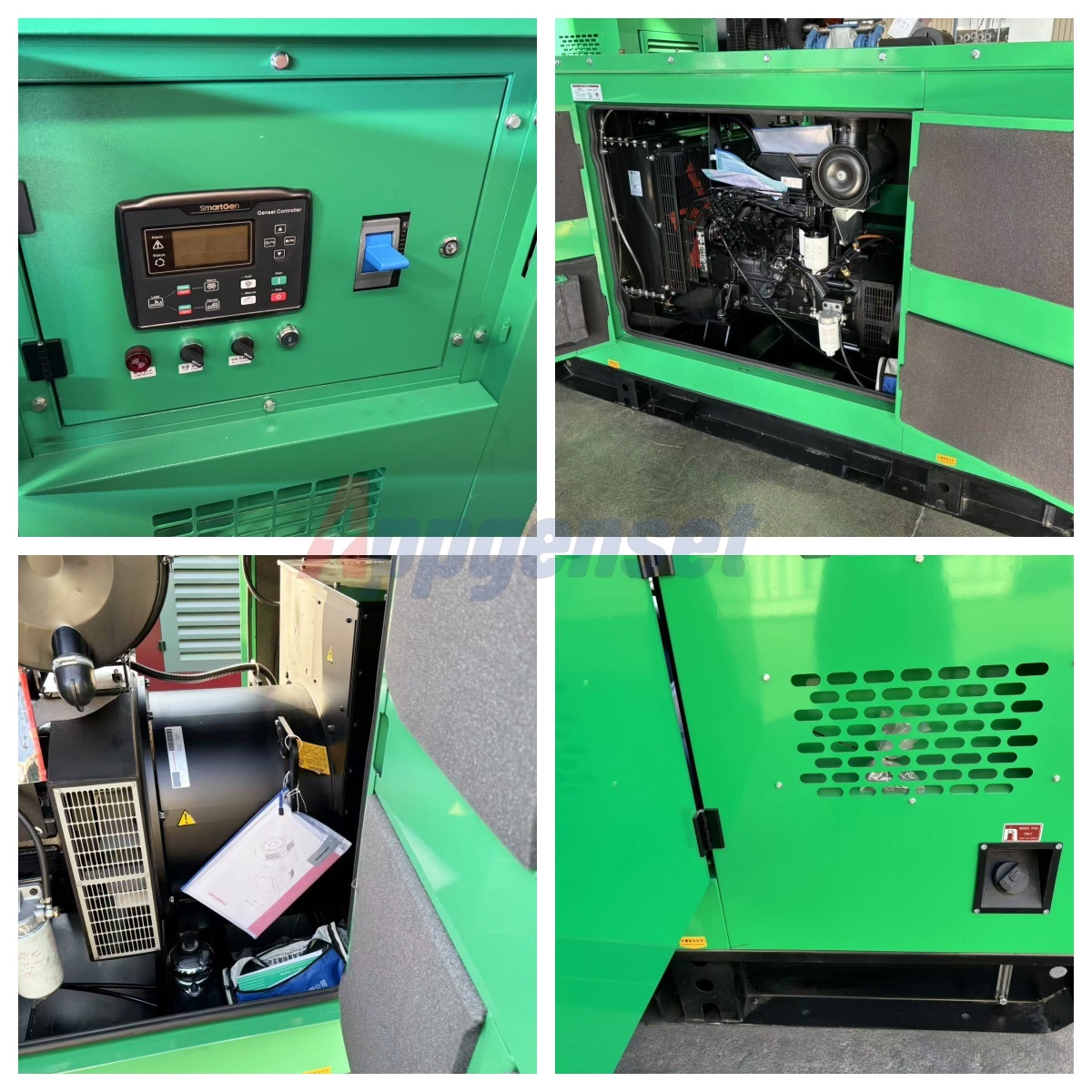

| Controller | Deepsea brand | DSE8610 | |

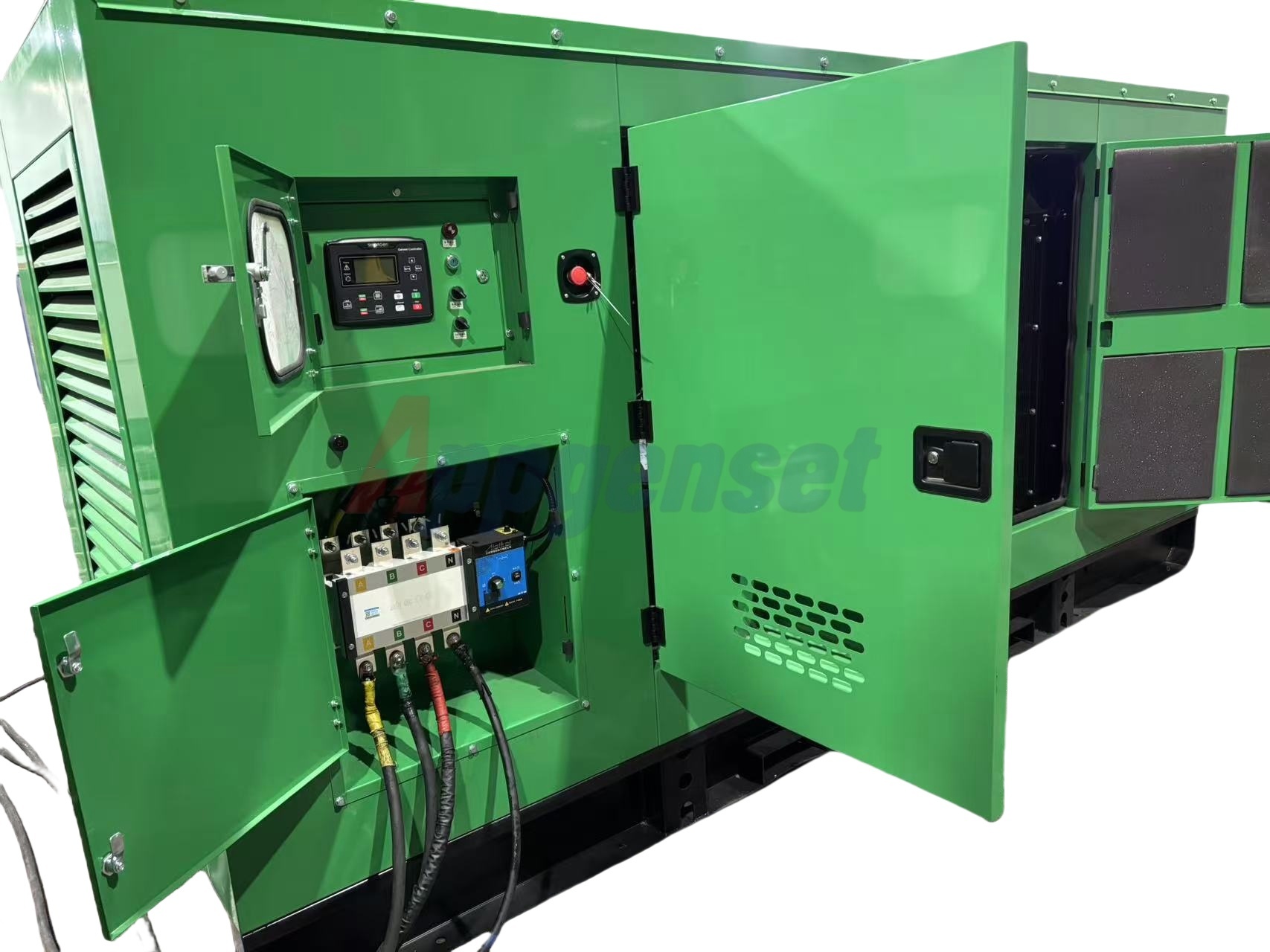

| ATS with seperate cabinet | 1600A | ||
| Fuel tank | sub-base | 8hrs working capacity ( around 228L) | |
| Overall Size(mm) | Length | 2900 | |
| Width | 1050 | ||
| Height | 1250 | ||
| Gross Weight(kg) | 1650 | ||
| ATS cabinet L*W*H MM | 1000*380*1100 | ||
| PER PARALLEL cabinet L*W*H MM | 500*400*1100 | ||
| With battery, battery charger,shock absorber , cummins manual book etc. | |||
