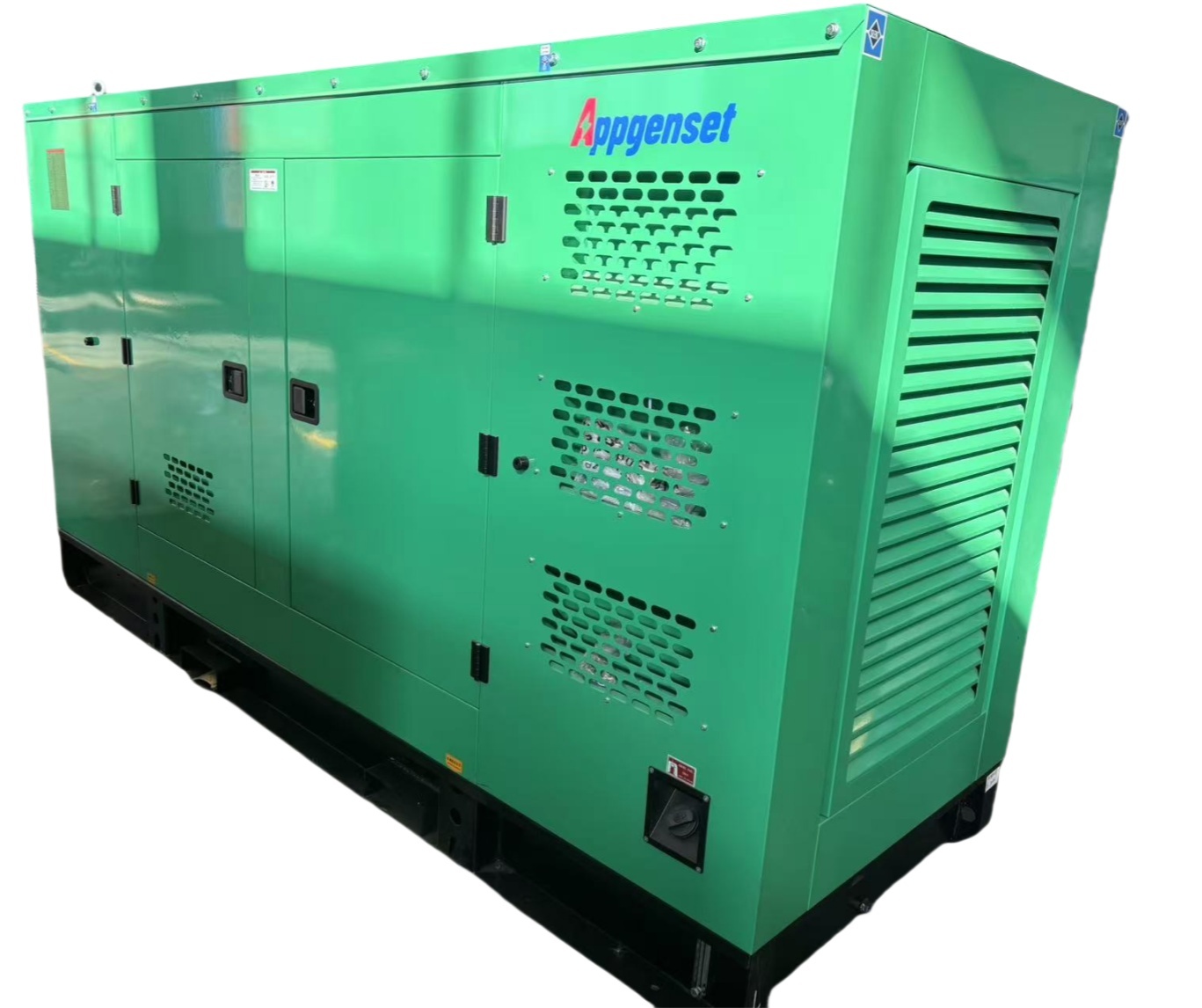

| Genset Model | Silent Type | CU350GFS | |
| Standby Power (KW/KVA) | 280/350 | ||
| Prime Power(KW/kVA) | 250/312.5 | ||
| CUMMINS Diesel Engine | Model | 6LTAA9.5-G1 | |
| Type | water-cooled, in line, 4-stroke, direct injection | ||
| Standby Power(kW) | 290 | ||
| Aspiration | Turbocharged and Charge Air cooled | ||
| No.of Cylinder | 6 | ||
| Bore x Stroke(mm) | 116x148 | ||
| Displacement | 9.5 | ||
| Compression Ratio | 16.6:1 | ||
| Noise Level (dBA) | 75-85 | ||
| Electronic Governor Rate | ≦1% | ||
| Exhaust Temperature(°C) | 520 | ||
| Lub oil Capacity(L) | 28.1 | ||
| Rated Fuel Consumption75% (L/h) | 52 | ||
| Alternator | Model | HC434DH | |
| Rated Power(kW/kVA) | 250/312.5 | ||
| Voltage Regulation | ≦±1 | ||
| Excitation Type | Brushless | ||

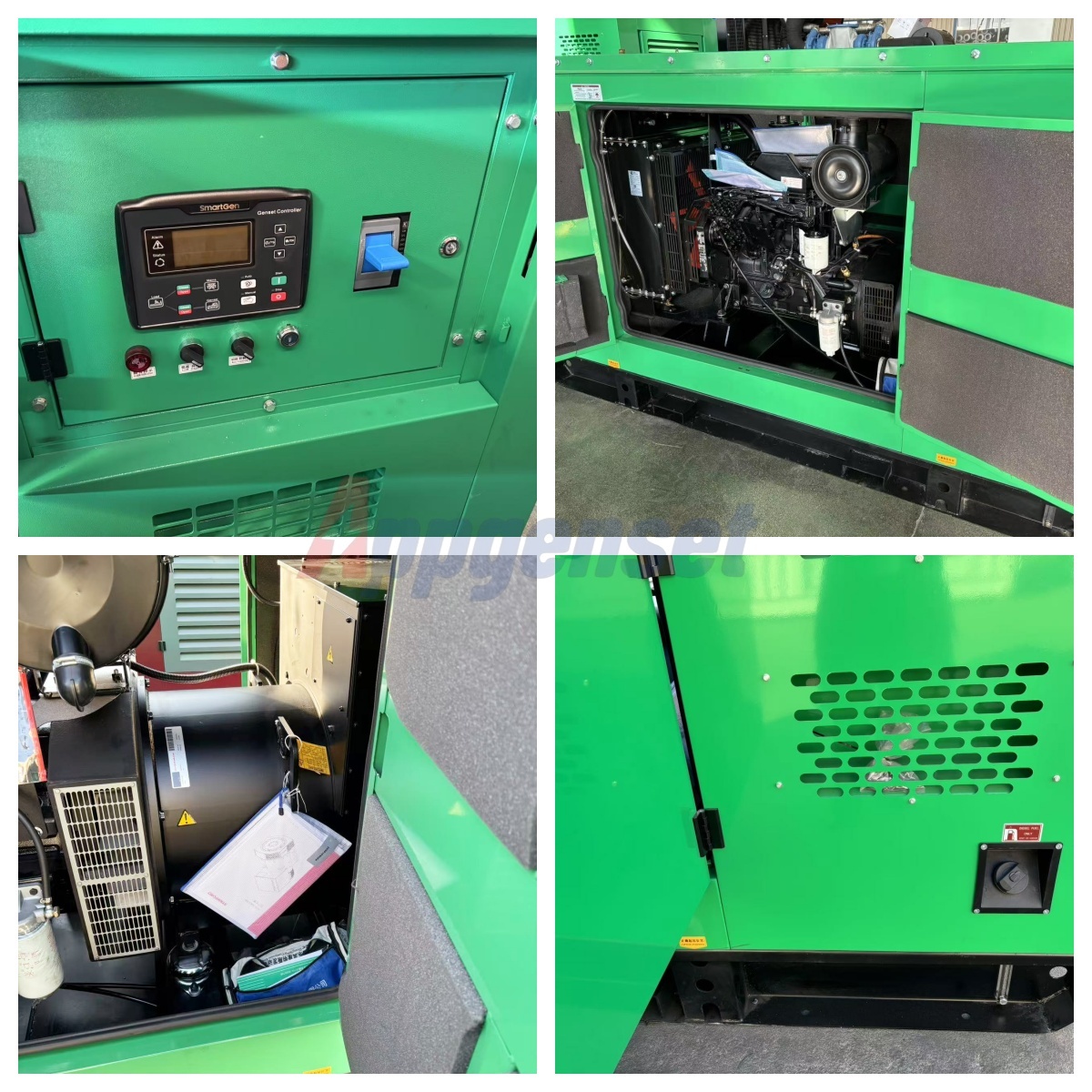

| Controller | Smartgen brand | HGM6120 | |
| Fuel tank | sub-base | 8hrs working capacity | |
| Overall Size(mm) | Length | 3900 | |
| Width | 1400 | ||
| Height | 2050 | ||
| Gross Weight(kg) | 2940 | ||
| With ATS ， battery, battery charger,shock absorber , cummins manual book etc. | |||
| All technologies are subject to the interpretation of the technology department, subject to change without notice. | |||
